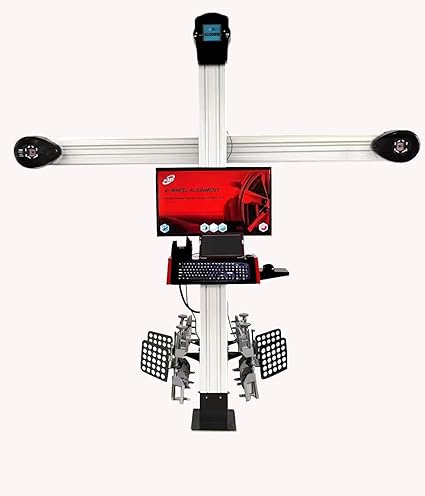

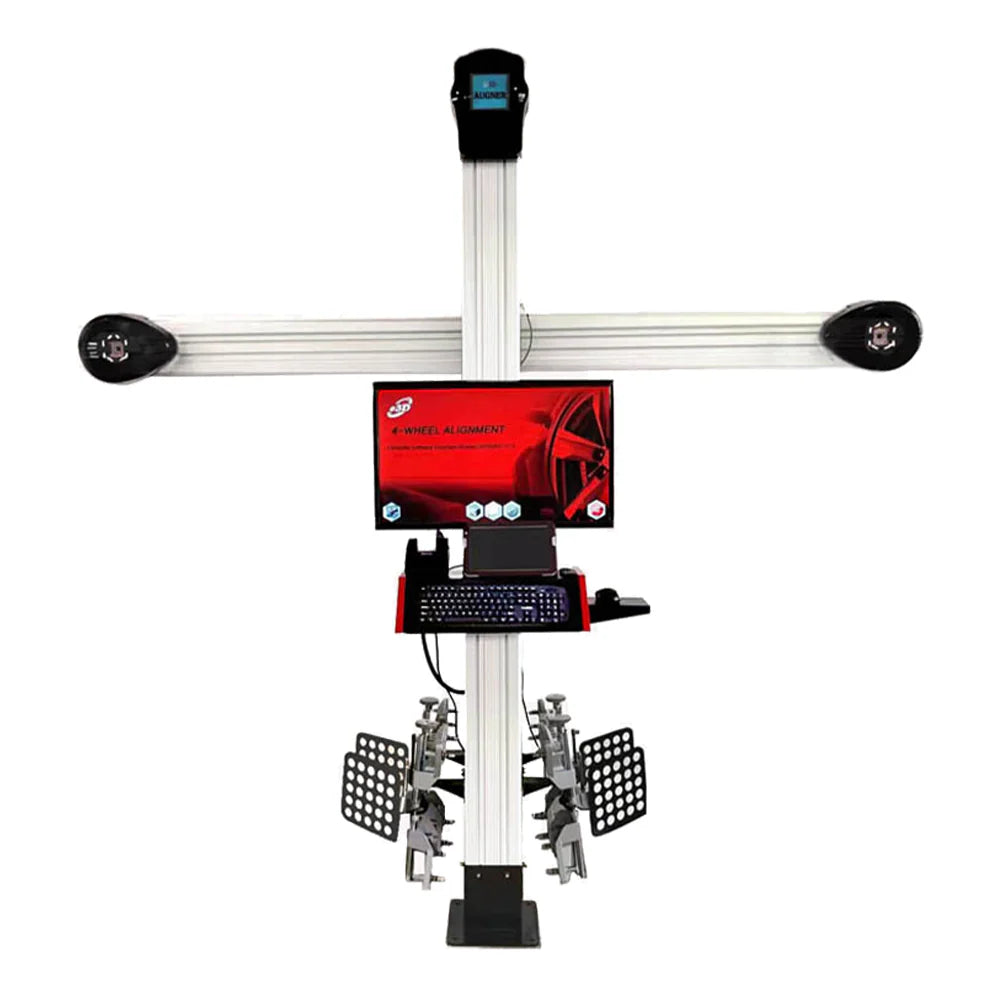

AV6 Pro - Wheel Alignment Machine - Works on 2 Post, 4 Post & Scissor Lifts
$5,490.00
Product Description

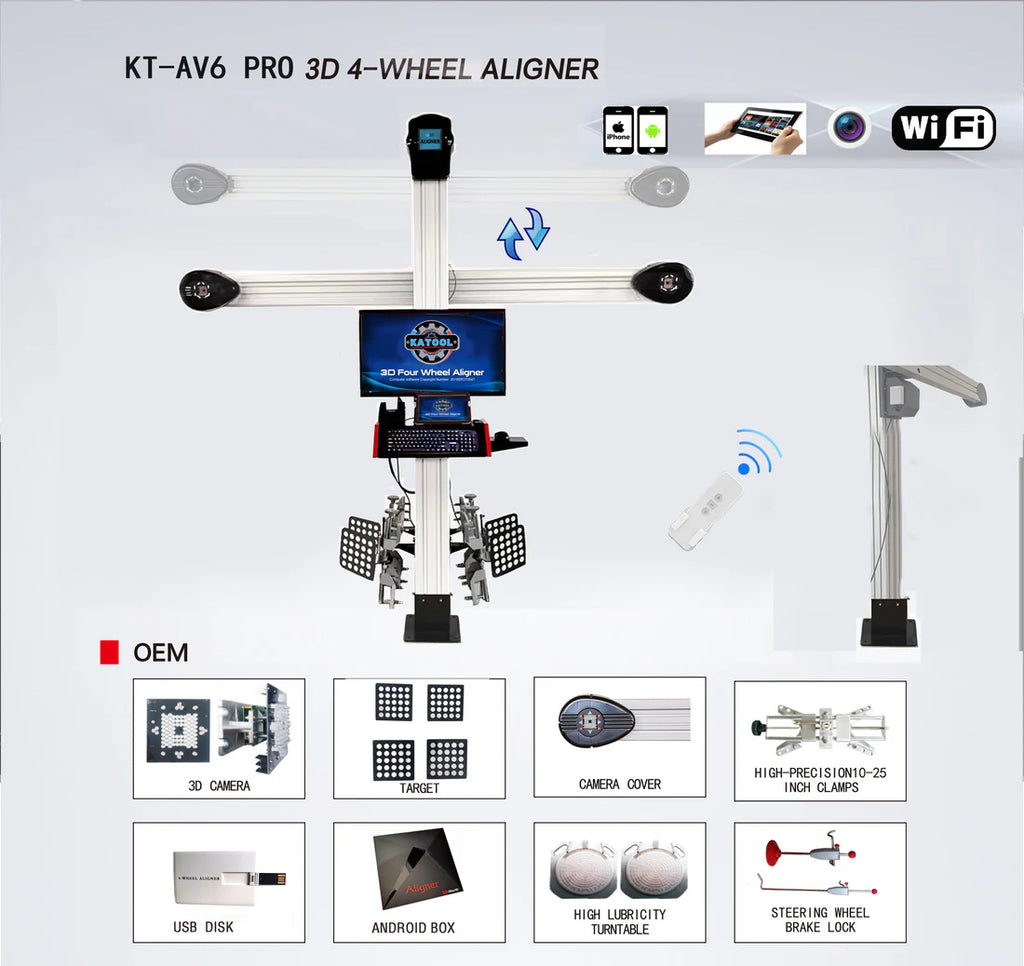

- Mobile 3D Wheel Aligner for Lift Application
- Unlimited memory for vehicle specifications
- No calibration during installation
- Includes tablet and a 30inch display screen, mouse and keypad, and a printer
- Complementary WIFI device and USB drive
- Uses Android and IOS systems for the software, minimizes the need for software and system maintenance
- Synchronous Display on Smart Phone and Pad
- The client can read the alignment operation on the smart device during the service
- During rear wheel adjustment, the engineer can check data changes on a smartphone easily
- The post moves by a remote, making it easy to track the height of the car
- No cabinet design, compact and keeps the workspace tidy
- Free database upgrades yearly
- The database keeps up with the most recent car models from all US, European and Asian brands.
Specifications:
|
Power Supply |
100-240V,50/60 HZ,1 Ph |
|
Working Temperature |
41F…104 F(+5℃…+40℃) |
|
Cameras (Total) |
2 |
|
Tire Diameter |
9 27/32-31 1/2 in(250-800 mm) |
|
Wheelbase |
62 63/64 -82 43/64 in(1.6-2.1m) |
|
Track Width |
70 55/64-177 11/64 in(1.8 -4.5 m) |
|
Warranty |
1-Year Limited |
|
Product Weight |
440.92 Ibs(200 kg) |
|
Shipping Weight |
529.11 Ibs(240 kg) |
|
Shipping Dimensions |
26x35.43x36.22 in(660x900x920mm) 110.24x15.75x15.75in(2800x400x400mm) |
Note: Bayline Equipment is an authorized distributor of KA Tool equipment.
