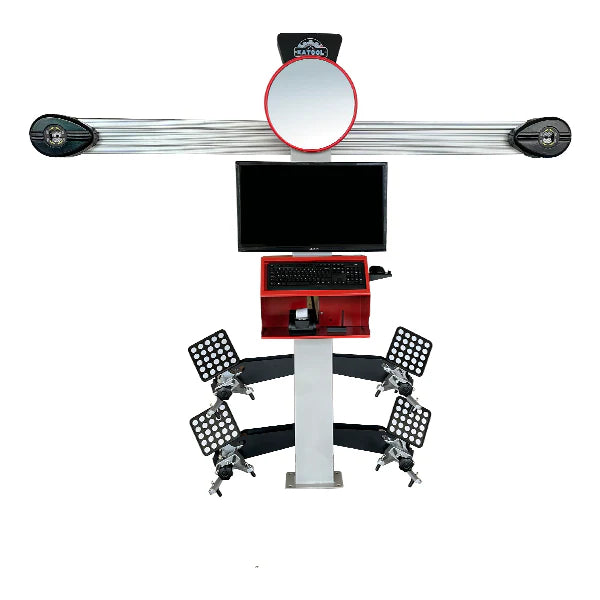

AV533 - 3D Wheel Alignment Machine
$3,999.00
Measurement parameters, range and accuracy:
1. Total front beam Angle
Measuring range: ± 6 °.
Accuracy: ± 4' in ± 2 ° range, ± 10' in other ranges.
2. Front beam Angle of single wheel
Measuring range: ± 3 °.
Accuracy: ± 2' in ± 2 ° range, ± 5' in other ranges.
3. Wheel camber
Measuring range: ± 10 °.
Accuracy: ± 2' in ± 4 ° range, ± 10' in other ranges.
4. Kingpin Rear Angle
Measuring range: ± 15 °.
Accuracy: ± 2' in the range of ± 12 °, ± 10' in other ranges.
5. Kingpin Incliner
Measuring range: ± 20 °.
Accuracy: ± 6' in range of 0 ° -- +18 °, ± 10' in other ranges.
12
6. Thrust Angle
Measuring range: ± 6 °.
Accuracy: ± 2' in ± 2 ° range, ± 10' in other ranges.
7. Axis Angle
Measuring range: ± 6 °.
Accuracy: ± 2' in ± 2 ° range, ± 10' in other ranges.
8. Indicates value requirements
8.1 Display value resolution
The angular resolution is 1', where the forward beam value is 1' in Angle or
0.1mm in mm.
8.2 Zero drift
Zero drift is not greater than 4' within 30min.
8.3 Indicating value error
The value error is ± 4'.
8.4 Indicate value stability
The indicated stability is ± 2' within 10s.
Note: Bayline Equipment is an authorized distributor of KA Tool equipment.
